RB-215

$279.95

SKU: 700004 Category:

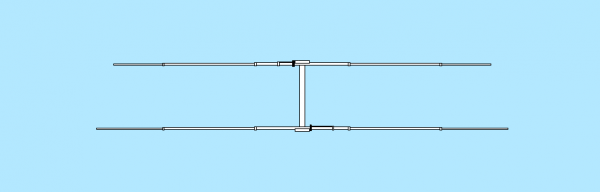

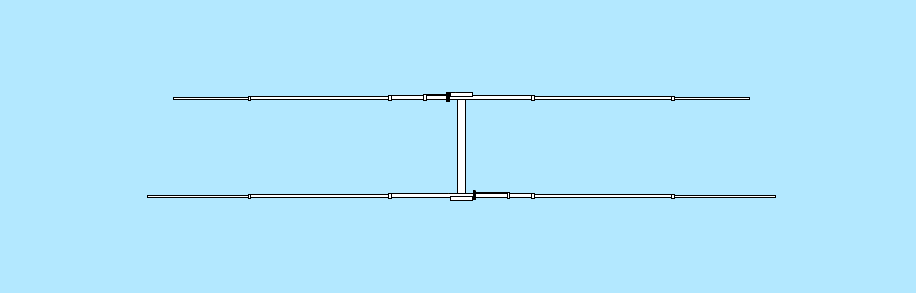

The RB-215 15m beaeven when it is operated as low as ½ wavelength above ground. This m’s DX performance is surprisingly good lightweight compact monoband beam is easily supported by a light-duty TV tower or push-up pole, and turned with a light-duty rotor. It’s also perfect for field day and DXpeditions.

Don’t let its small size fool you. This antenna will compete with yagis with up to twice the boom length, yet you’ll hear the weak ones better due to its low noise characteristics. Its supergain performance is backed by a money-back guarantee.

           Specifications

Wind loading: 2.2 Sq. ft. (maximum 80 mph) Weight: 11 lbs.

Maximum element length: 23’ 7” Turning radius: 12.25’

Boom Length: 5’ 0″ Boom diameter: 1.25”

Feedpoint Imp: 50 Ohm unbal. Feedpoint: UHF Conn.

Free space gain : =>8 dBi F/B ratio: =>25 dB

Weight 11 lbs
Dimensions 4 × 4 × 72 in
