SKU: 700007 Category:

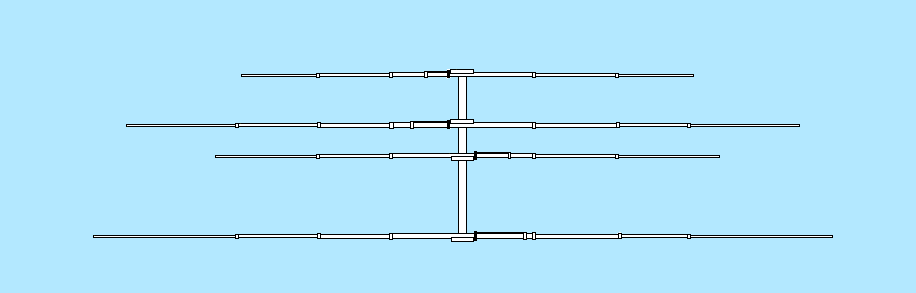

With a separate feed point for each band, the RB-24w dual WARC-band beam offers no compromise mono-band performance on the 17m and 12m bands. This lightweight compact beam is ideal for mounting on a common mast with a tri-bander or is  easily supported on a light-duty TV tower or push-up pole, and can be turned with a light-duty rotor. Its also perfect for field day and DXpeditions. Plans for a common coax feedline decoupler is included.

Don’t let its small size fool you. This antenna will compete with yagis with up to twice the boom length, yet you will hear the weak ones better due to its low noise characteristics. Its awsome performance is backed up by a money-back performance guarantee.


Wind loading: 3.8 Sq. ft. (maximum 90 mph) Weight: 20 lbs.

Maximum element length: 28’ 3½” Turning radius: 16’ 4″

Boom Length: 8’ Boom diameter: 1.375”


Weight 21 lbs
Dimensions 4 × 4 × 72 in
