RB-315

$439.95

SKU: 700011 Category:

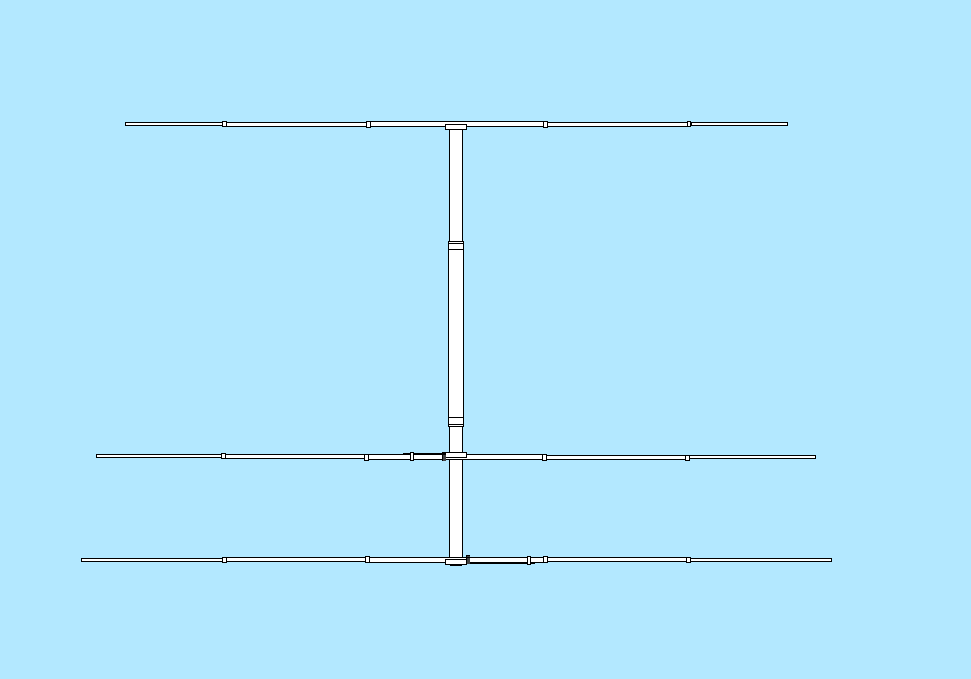

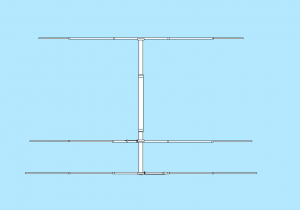

The RB-315 has surprisingly good DX performance even when operating as low as ½ wavelength. A full-size wide spaced 3 element monoband beam, it’s easily supported by a medium-duty tower, and turned with a medium to heavy-duty rotor.  When mounted at 1 to 1½ wavelengths or higher it’s a force to be reckoned with.

This antenna was designed with the serious DX’er/contester in mind. It will compete with yagis with up to twice the boom length, and you’ll hear the weak ones better due to its low noise characteristics. Its supergain performance is backed by a money-back guarantee.

           Specifications

Wind loading: 3.75 Sq. ft. (maximum 80 mph)

  • Weight: 25 lbs.
  • Maximum element length: 23’ 6½”
  • Turning radius: 14’
  • Boom Length: 17.1′
  • Boom diameter: 1.75”
  • Feedpoint Imp: 50 Ohm unbal.
  • Feedpoint: UHF coax connector



Weight 25 lbs
