SKU: 700009 Category:

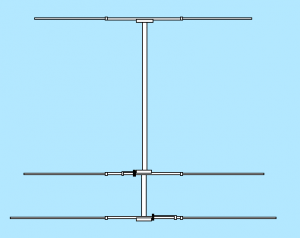

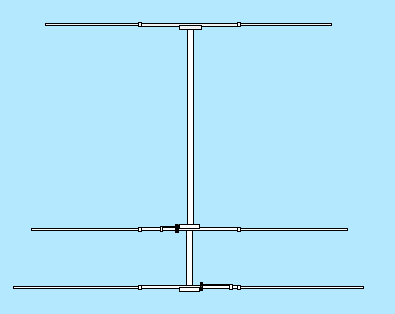

The RB-306 has surprisingly good DX performance even when it is operated as low as 1 wavelength above ground. This lightweight 3 element full-size monoband beam is easily supported by a light-duty t0wer or TV push-up pole, and turned with a light-duty rotor. When mounted at 3 to 5 wavelengths or higher it’s a force to be reckoned with. It’s also perfect for field day and DXpeditions.

Don’t let its small size fool you. It will compete with yagis with up to twice the boom length, and you’ll hear the weak ones better due to its low noise characteristics. Its supergain performance is backed by a money-back guarantee.


  • Wind loading: 1.12 Sq. ft. (maximum 80 mph)
  • Weight: 5.4 lbs.
  • Maximum element length: 9’ 7¼”
  • Turning radius: 6.25’
  • Boom Length:  6′
  • Boom diameter: 1.25”
  • Feedpoint Imp: 50 Ohm unbal.
  • Feedpoint: UHF coax connector


Weight 6 lbs
Dimensions 4 × 4 × 72 in
