RB-36X

$639.95

SKU: 700013 Category:

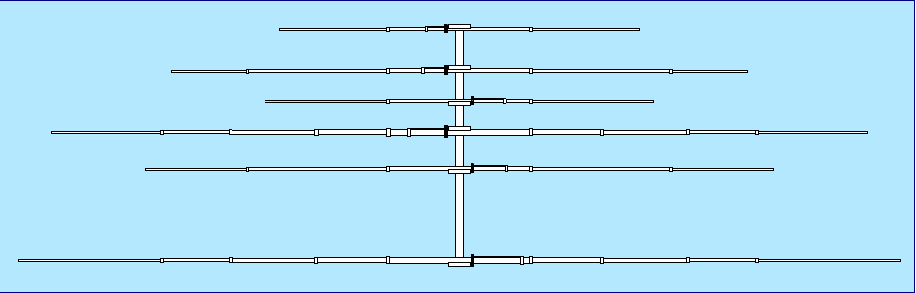

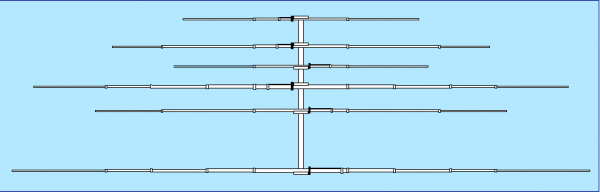

With separate feed points for each band, the RB-36x tribander offers no compromise mono-band performance on each band. Lightweight with a short boom, this is the perfect “city dweller” multi-band beam.

Don’t let its small size fool you. This antenna will compete with triband yagis with up to twice the boom length, yet you will hear the weak ones better due to its low noise characteristics. Its awsome performance is backed up by a money-back performance guarantee.

           Specifications

Wind loading: 7 Sq. ft. (maximum 90 mph) Weight: 36 lbs.

Maximum element length: 35’ 4” Turning radius: 18.5’

Boom Length: 12’ Boom diameter: 2”

Feedpoint Imp: 50 Ohm unbal. Feedpoints: 3



Weight 37 lbs
Dimensions 6 × 6 × 72 in
